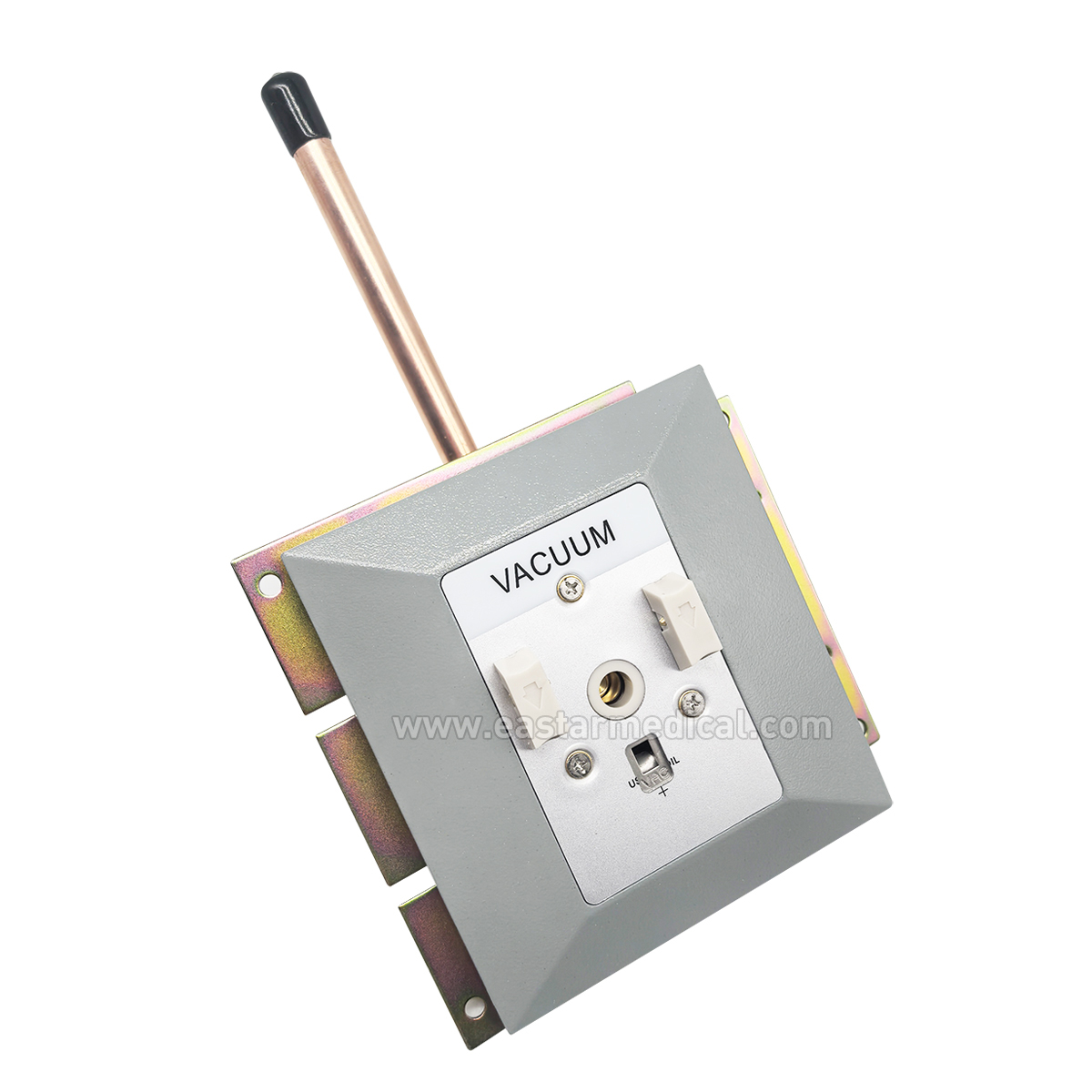

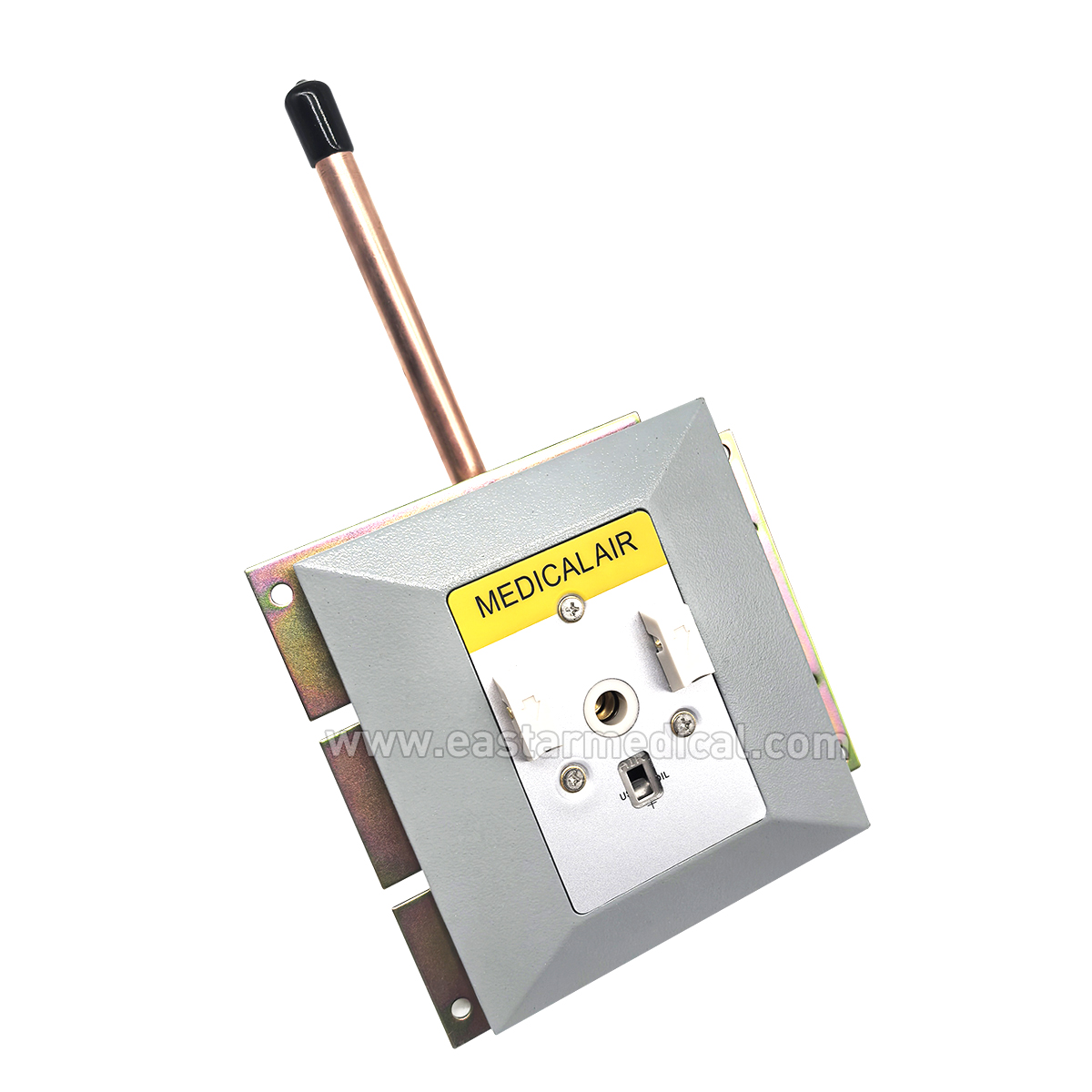

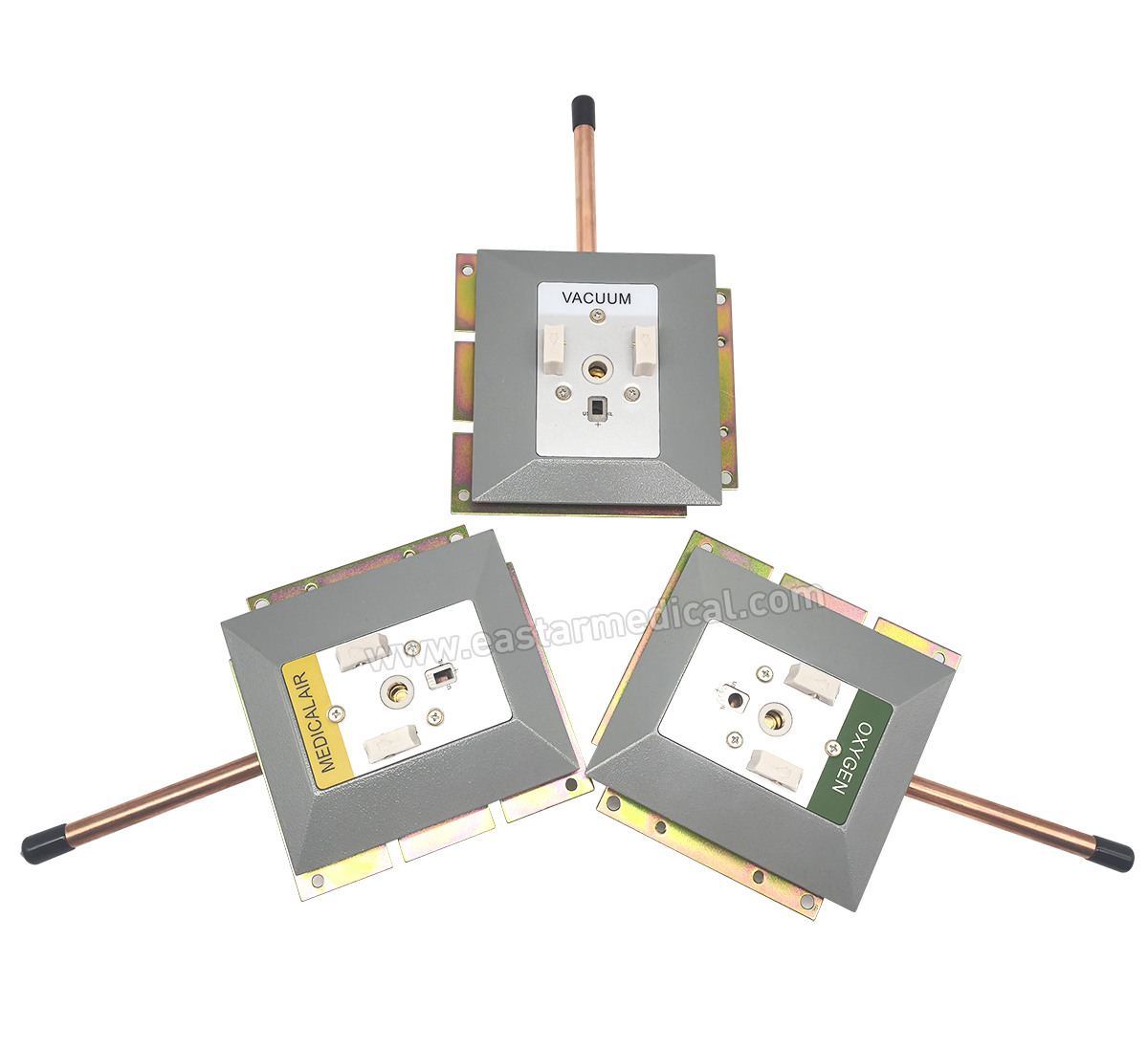

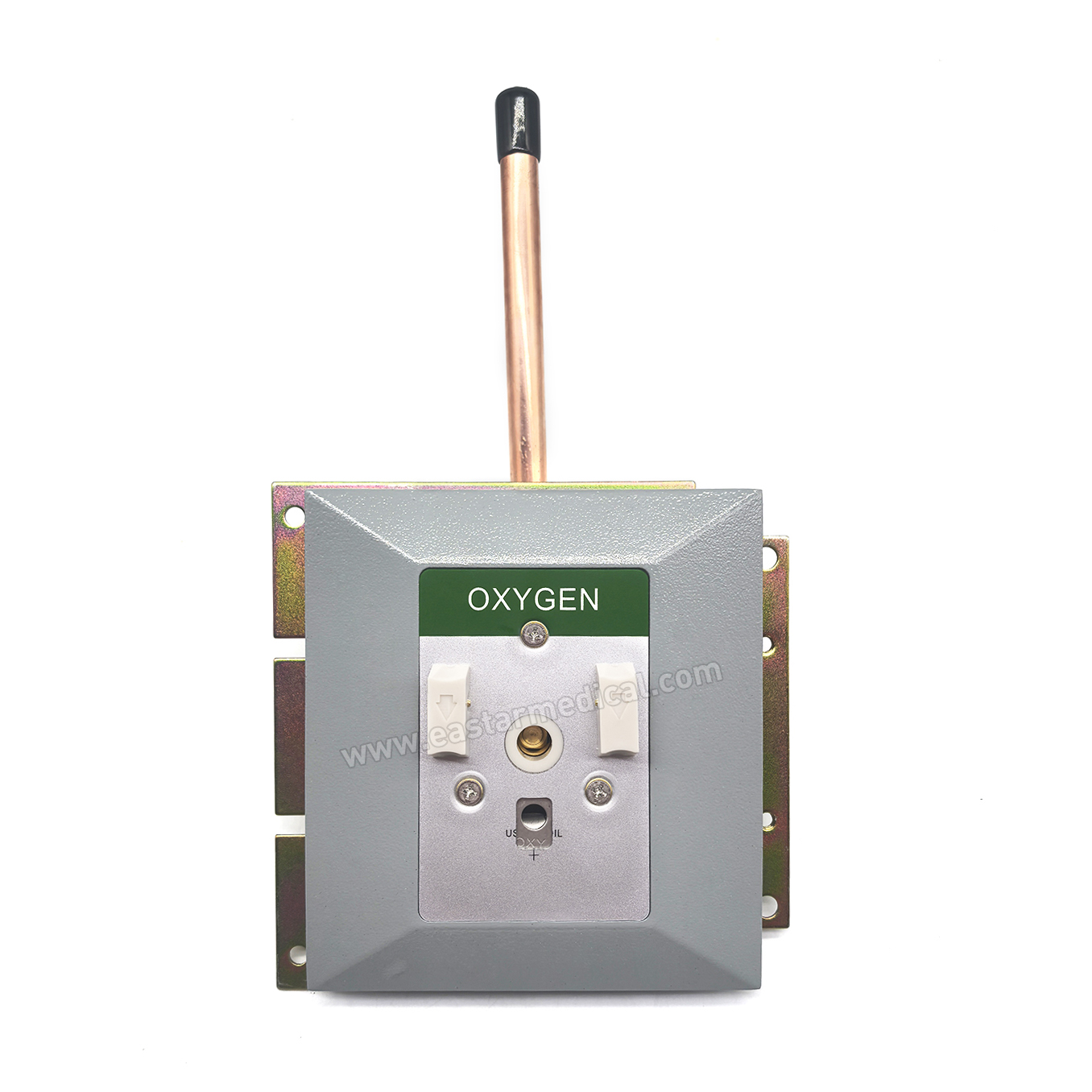

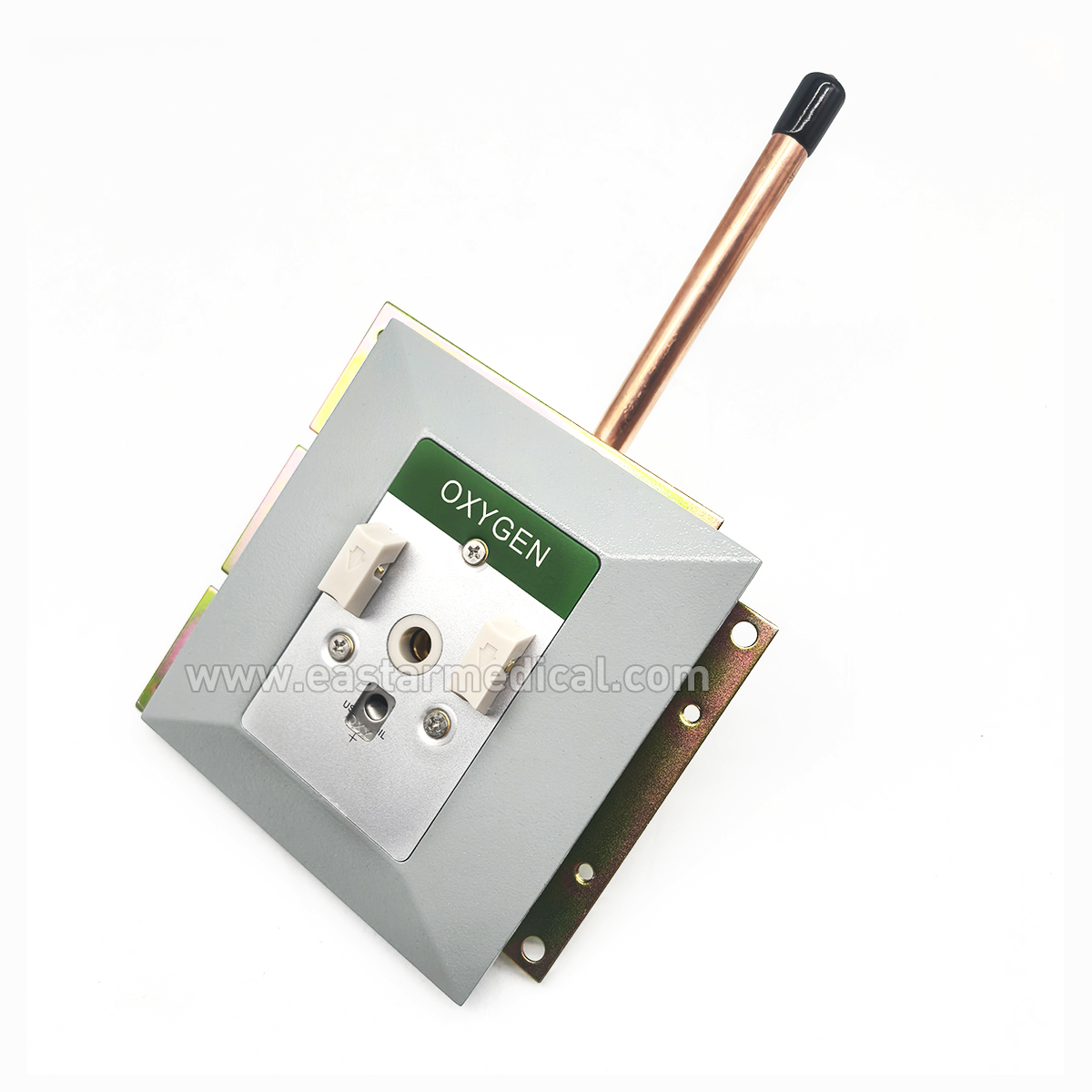

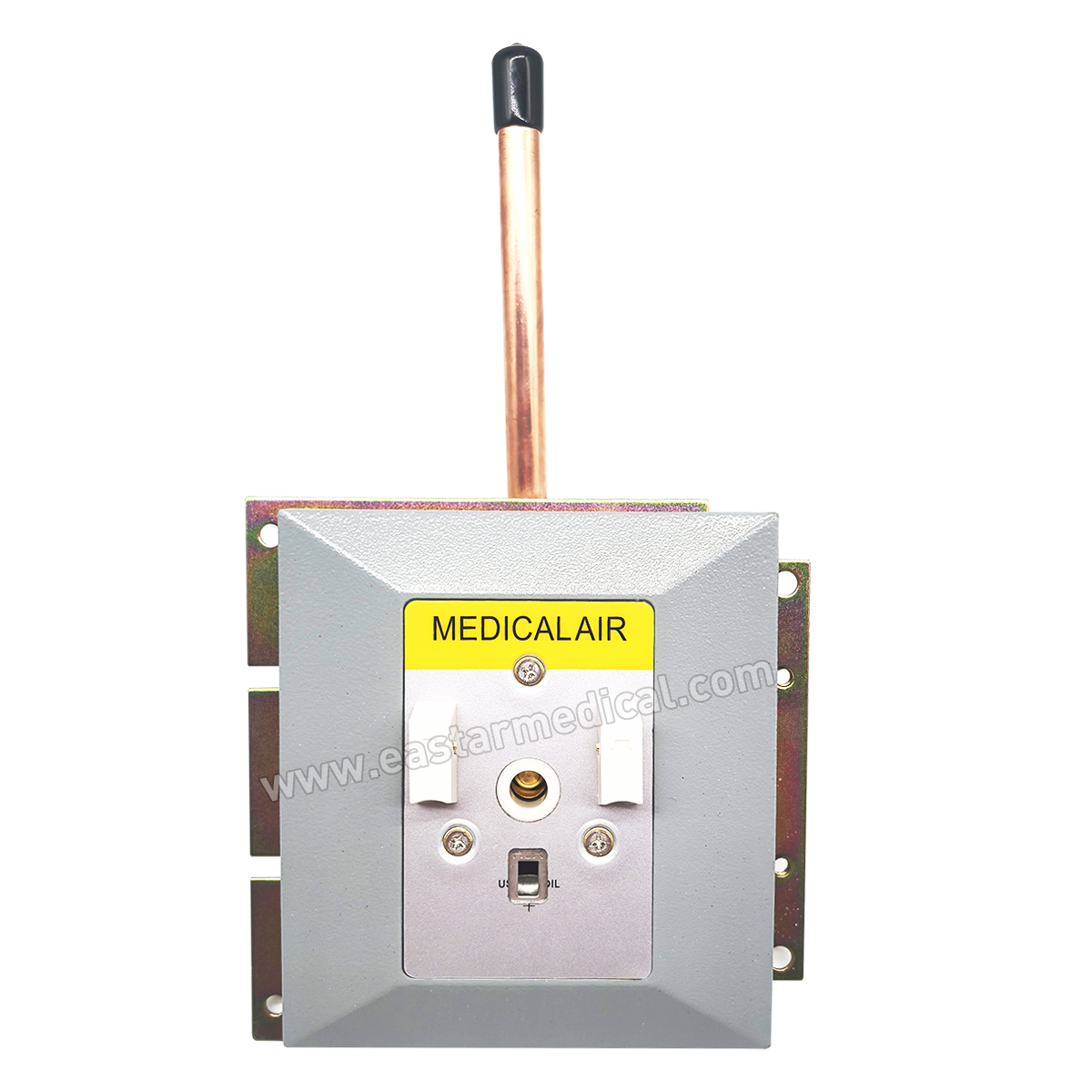

Chemetron medical gas outlets include wall mount type and rough-in assembly type.
Wall mount type is using installed on the wall, available in plastic and metal covers.
Rough-in assembly type with a plastic decorative cover is using on the bed head unit.
Medical gas outlets can provide 4 kinds of gas, including oxygen, medical air, vacuum, nitrous oxide. Different gases can be equipped with corresponding gas adapters.
Specifications
* Complies with NFPA 99 and CGA Standard
* 360° swivel inlet pipe for easy installation
* Insertion and extraction 10000 times without failure
* Working pressure: 4-8bar
* O.D. Size: 8mm, 10mm, 12mm K type copper pipeline
* 100% pressure and leak-tested, can be used safely and securely
* The outlet with two-stage one-way valve for easy maintenance without cutting gas supply
* NFPA full-color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
* Accepts only Chemetron gas connection fitting
Availability: | |
---|---|
Quantity: | |
WAL-CH-OXY
Eastar OHMEDA medical gas outlets include wall mount assembly type and rough-in assembly type. The wall mount type is using installed on the wall and the console type is using on the bed head unit. Provides NFPA full-color standard for easy gas identification. All outlets are 100% tested for flow, leaks, and cleaned to ensure quality. Accept only OHMEDA gas specific adapters. Produced according to the NFPA99 standard. Comply with the ISO9710 standard.
- 360° swivel metal base for easy installation
- The outlet socket and the base adopt a combined structure, the same gas base can be used universally
- The two stage one-way valve allows for easy maintenance without cutting the gas supply
- 100% tested for pressure and flow to ensure no leakage
- NFPA full-color standard for easy gas identification, and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
- Insertion and extraction 10000 times without failure
Eastar OHMEDA medical gas outlets include wall mount assembly type and rough-in assembly type. The wall mount type is using installed on the wall and the console type is using on the bed head unit. Provides NFPA full-color standard for easy gas identification. All outlets are 100% tested for flow, leaks, and cleaned to ensure quality. Accept only OHMEDA gas specific adapters. Produced according to the NFPA99 standard. Comply with the ISO9710 standard.
- 360° swivel metal base for easy installation
- The outlet socket and the base adopt a combined structure, the same gas base can be used universally
- The two stage one-way valve allows for easy maintenance without cutting the gas supply
- 100% tested for pressure and flow to ensure no leakage
- NFPA full-color standard for easy gas identification, and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
- Insertion and extraction 10000 times without failure
