- Comply with EN 737-1 standard
- 100% tested for pressure and flow to ensure no leakage
- Use positioning pin design to avoid gas confusion
- Insertion and extraction 10000 times without failure
| Quantity: | |
|---|---|

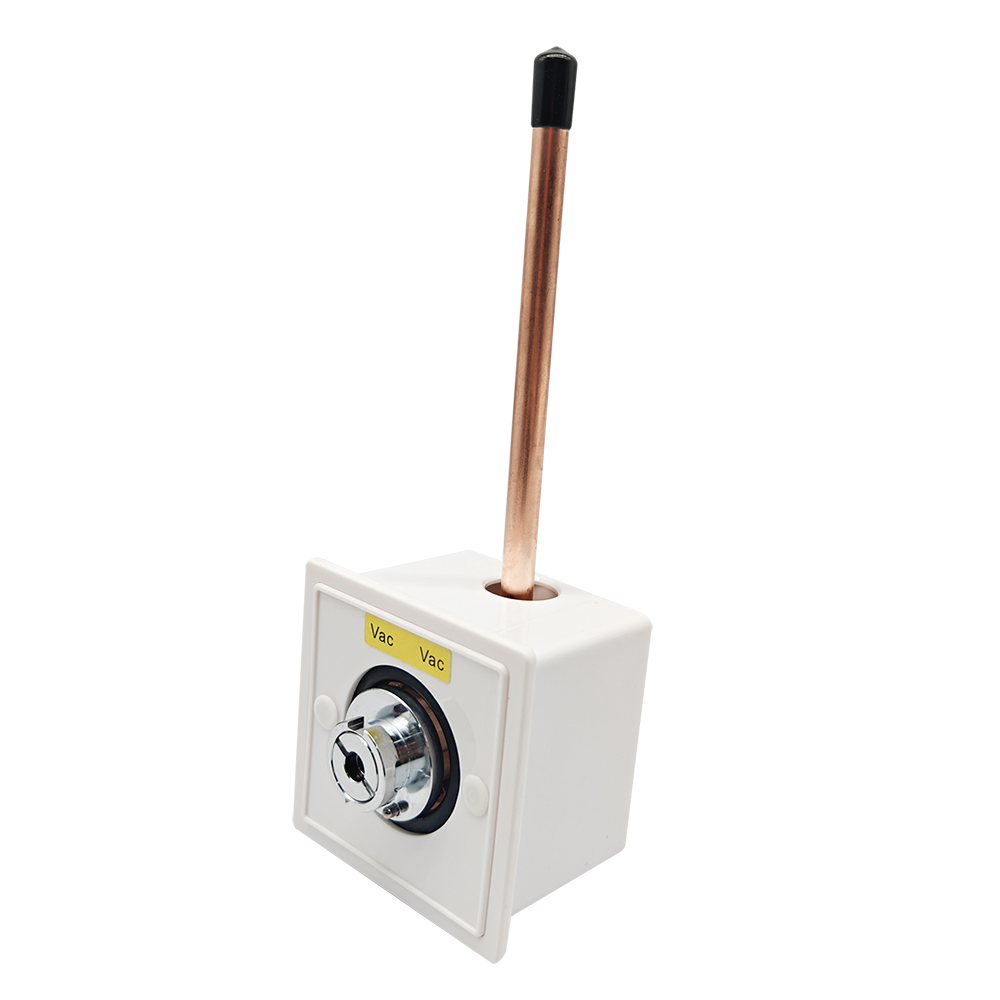

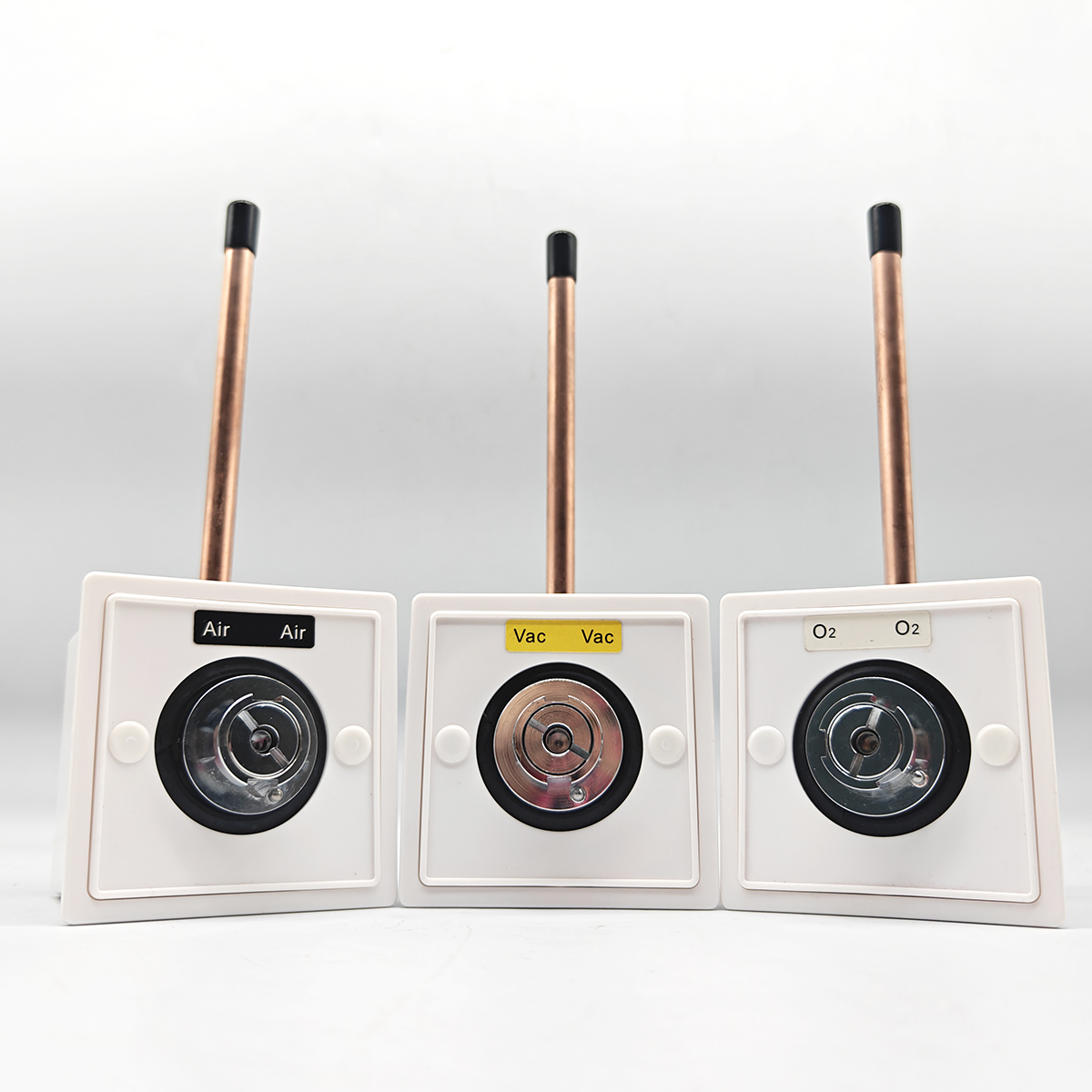

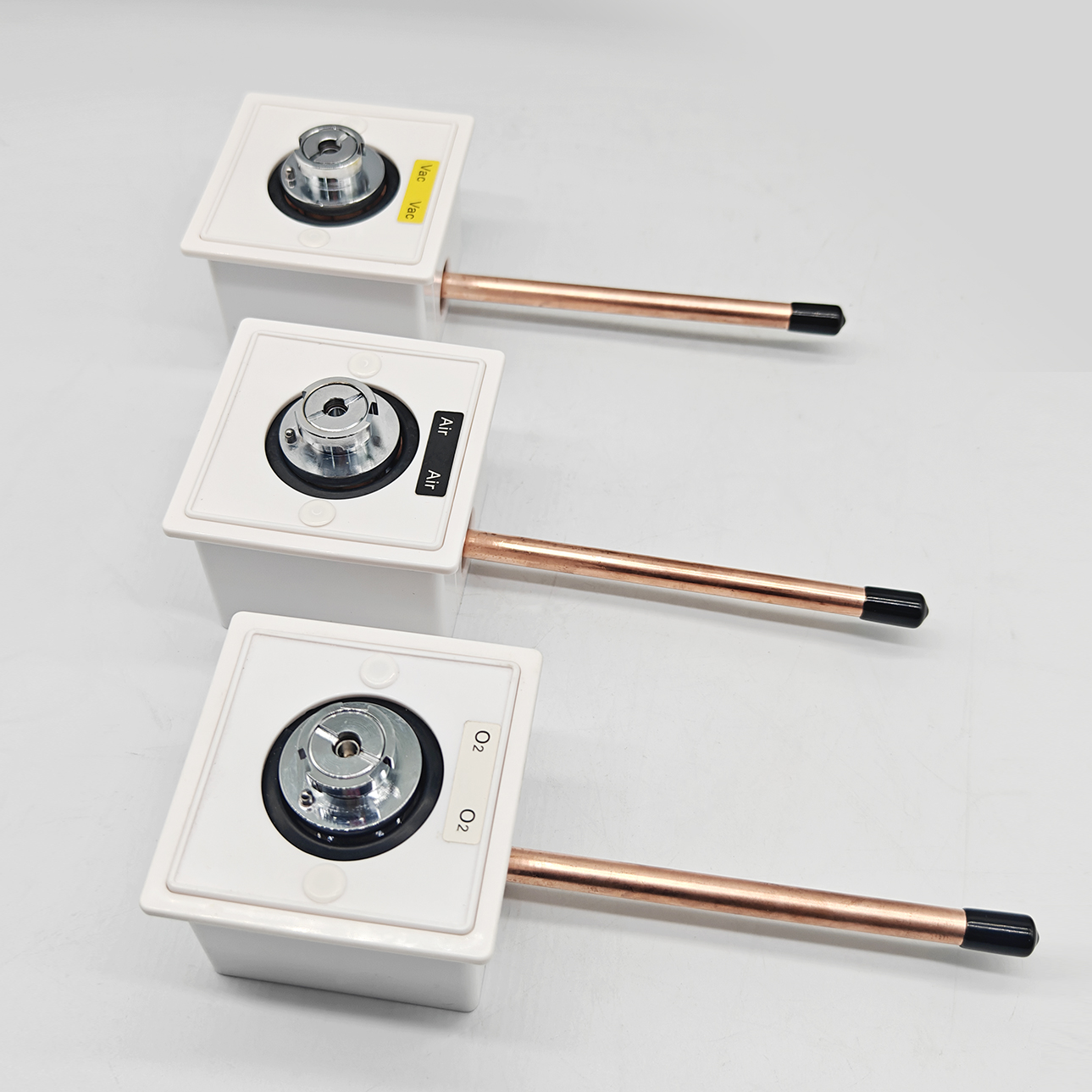

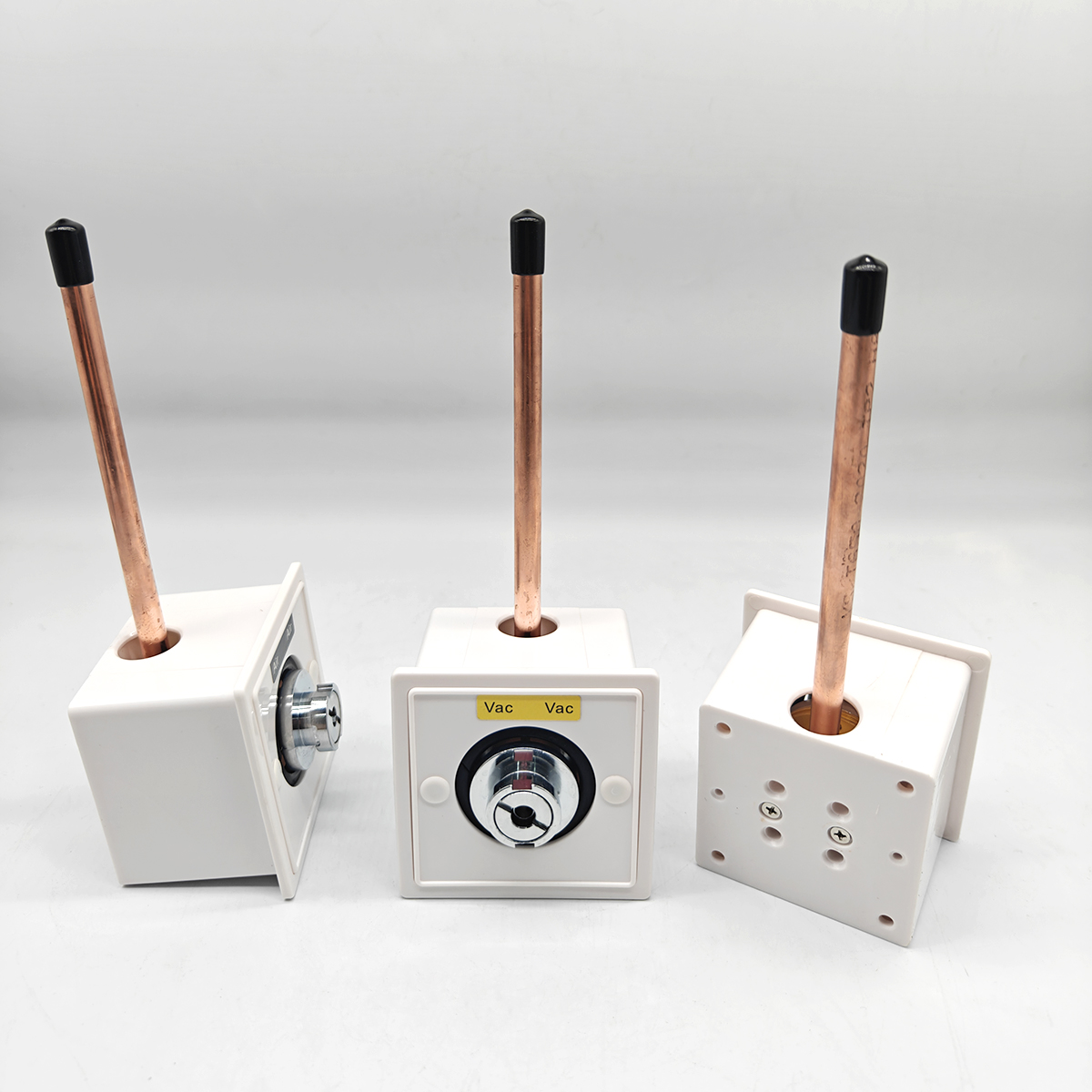

Medical gas outlets are used for medical gas system daily medical care and installed at gas systems delivery points to provide the required medical gas.
Eastar gas outlet can provide seven kinds of gas: oxygen, medical air, vacuum, N2O, CO2, instrument air and AGSS.
Different gases can be equipped with corresponding gas adapters, with an anti-mis plugging function.
Our medical gas outlets include wall mount type and rough-in assembly type. Wall mount type is installed on the wall. Rough-in assembly type is used on bed head unit or medical pendant. Available in 8mm, 10mm and 12mm diameter copper pipes. The main material is brass to ensure reliable quality and safe use. Our Medical gas outlets are in accordance with ISO EN 9170-1 and ISO 13485 standards.
- Secondary isolating valve enables easy maintenance,without shutting down the pipeline system
- Comply with EN 737-1 standard
- 100% tested for pressure and flow to ensure no leakage
- Use positioning pin design to avoid gas confusion
- Insertion and extraction 10000 times without failure
| Gas Type | Color | Wall Type | Console Type |
| Oxygen | White | JYFS-WAL-OXY | JYFS-CON-OXY |
| Air 4bar | Black/White | JYFS-WAL-MA4 | JYFS-CON-MA4 |
| Air 7bar | Black/White | JYFS-WAL-MA7 | JYFS-CON-MA7 |
| Vacuum | Yellow | JYFS-WAL-VAC | JYFS-JYJIS-VAC |
| N2O | Blue | JYFS-WAL-N2O | JYFS-CON-N2O |
| CO2 | Grey | JYFS-WAL-CO2 | JYFS-CON-CO2 |
| AGSS | Purple | JYFS-WAL-AGSS | JYFS-CON-AGSS |
Medical gas outlets are used for medical gas system daily medical care and installed at gas systems delivery points to provide the required medical gas.
Eastar gas outlet can provide seven kinds of gas: oxygen, medical air, vacuum, N2O, CO2, instrument air and AGSS.
Different gases can be equipped with corresponding gas adapters, with an anti-mis plugging function.
Our medical gas outlets include wall mount type and rough-in assembly type. Wall mount type is installed on the wall. Rough-in assembly type is used on bed head unit or medical pendant. Available in 8mm, 10mm and 12mm diameter copper pipes. The main material is brass to ensure reliable quality and safe use. Our Medical gas outlets are in accordance with ISO EN 9170-1 and ISO 13485 standards.
- Secondary isolating valve enables easy maintenance,without shutting down the pipeline system
- Comply with EN 737-1 standard
- 100% tested for pressure and flow to ensure no leakage
- Use positioning pin design to avoid gas confusion
- Insertion and extraction 10000 times without failure
| Gas Type | Color | Wall Type | Console Type |
| Oxygen | White | JYFS-WAL-OXY | JYFS-CON-OXY |
| Air 4bar | Black/White | JYFS-WAL-MA4 | JYFS-CON-MA4 |
| Air 7bar | Black/White | JYFS-WAL-MA7 | JYFS-CON-MA7 |
| Vacuum | Yellow | JYFS-WAL-VAC | JYFS-JYJIS-VAC |
| N2O | Blue | JYFS-WAL-N2O | JYFS-CON-N2O |
| CO2 | Grey | JYFS-WAL-CO2 | JYFS-CON-CO2 |
| AGSS | Purple | JYFS-WAL-AGSS | JYFS-CON-AGSS |
