YSDBF-02

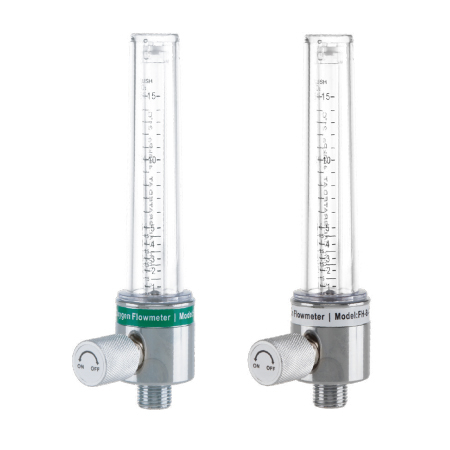

Medical gas flowmeters supply oxygen or air for hypoxic patients at a suitable flow rate.
The flowmeter comprises a flow tube, control valve and humidifier bottle. The oxygen or air enters the humidifier bottle through the flowmeter, and after humidified, it is output according to the set flow value for the patient to inhale oxygen. The flow control knob adjusts the flow rate value.
AmcareMed medical gas flowmeters are designed for dependability and durability. The pressure dome and accuracy are tested which ensures the safety of both the user and the patient.
Single or twin configuration allows a double and independent gas supply using a single gas source.
- Calibrated at 50 psi inlet pressure
- Labeling ISO or US(NFPA) colors code allows for easy gas identification
- 0-5lpm double scale display for easy observation
- Use integral high accuracy valve
- 100% tested to ensure accuracy
- Mounted with the direct probe
- Back pressure compensation to ensure measurement accuracy
- Size: 1/4'',3/8'',1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4''
- Calibrated at 50 psi inlet pressure
| Medical Gas | Oxygen, Medical Air |
| Flow Ranges | 0–1.5lpm, 0–5lpm, 0-10lpm, 0–15lpm, 0-30lpm, 0-50lpm, 0-70lpm |
| Inlet Pressure | 50 psi |
| Accuracy Of Flow Rate | ± 5 % |
| Screw Thread for Accessory | M 10 * 1 or 1/8“ Adapter |
| Material | Chrome Plated Brass Body, Polycarbonate Inner & Outer Tubes |
| Complied Standard | Medical Devices Directive 93/42/EEC, EN ISO 15002: 2008 |
