Availability: | |
---|---|
Quantity: | |
JYLV-02L-2
Packing: | poly bag, carton box,... | Delivery Date: | 30days |
Power: | Manual | Standard or Nonstandard: | Standard |
Media: | Gas | Pressure: | Medium Pressure |
Material: | Forged Brass | Temperature of Media: | Medium Temperature |
Structure: | Ball | Brand Name: | OEM |
Tube: | Type K copper | Sizes: | 1/2"-4" |
Medium: | Chemical gas, oxygen | Valve: | 3pcs brass ball valve |
Size range: | 1/2" - 4" | Port: | Full port |
Gauge port: | For |
Size: 1/4'',3/8'',1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4''
Meterial: Forged Brass (CW617N,CW614,CW602N,ASTM C 37700)
Technical Specification:
Norminal pressure: 3.0Mpa
Tested Pressure: 2.0Mpa
Working medium: Water, oil, gas
Working temperature: -20° C≤ T≤ 120° C
Thread standard: According ISO228, ISO7/1, DIN2999/
For the handle, it could be changed to Zinc alloy and aluminum handle
Package details: Each valve by one polybag, inner box, Cartons with wooden pallets
Application: House connection and drinking meter networks, water pipe connection and flow control

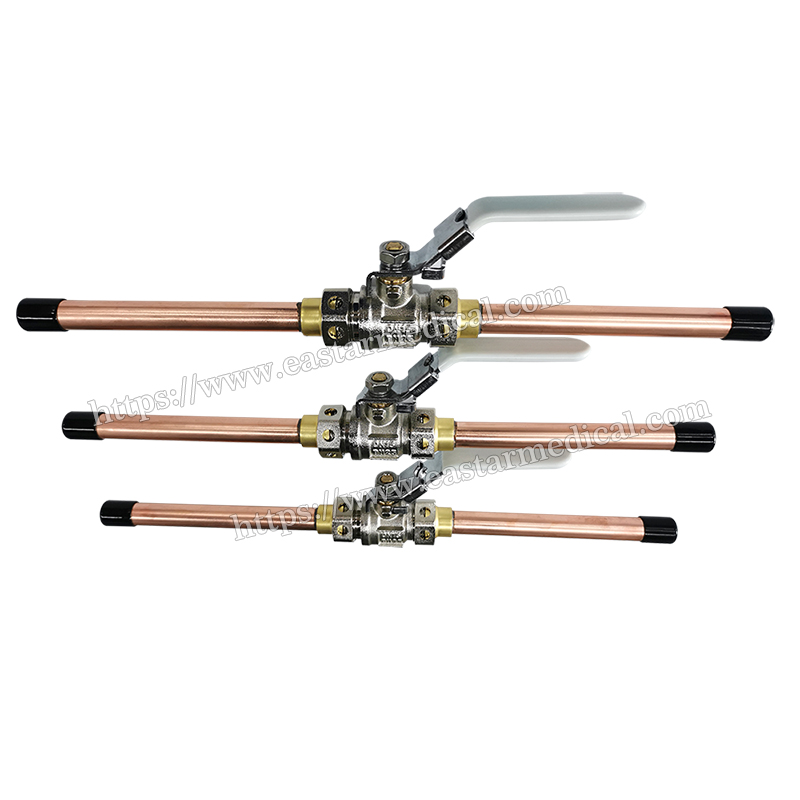

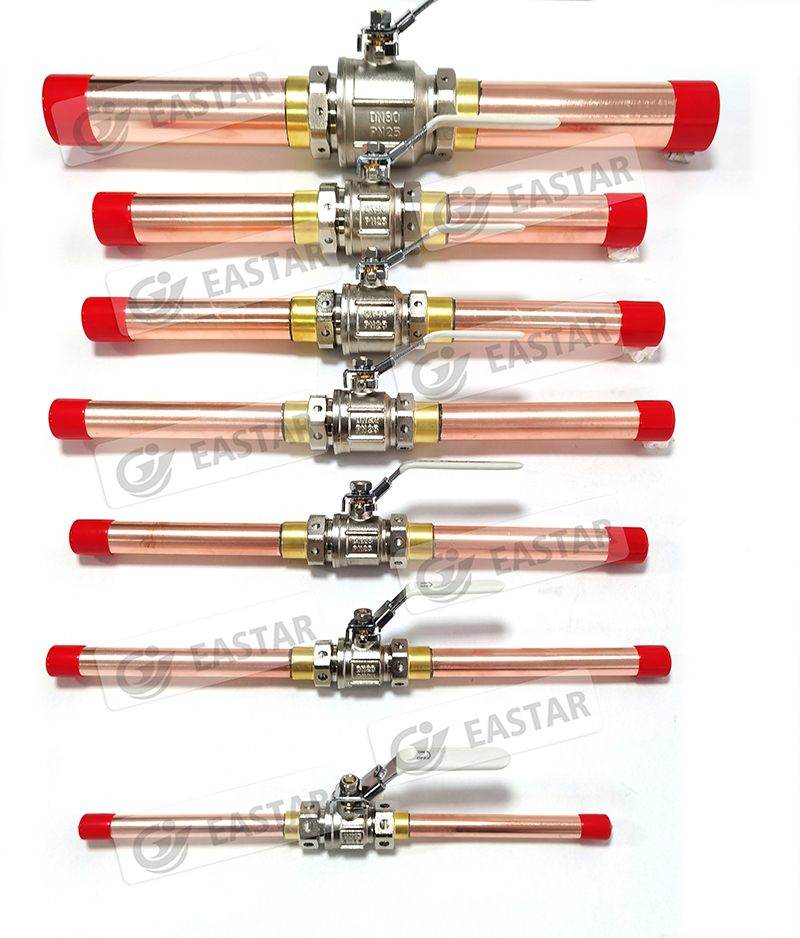

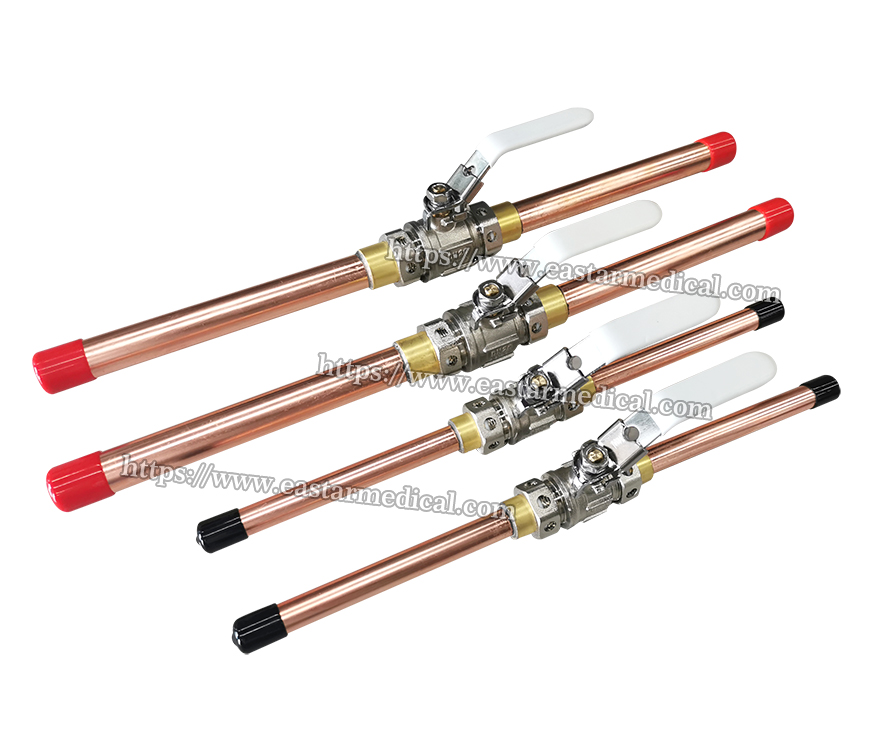

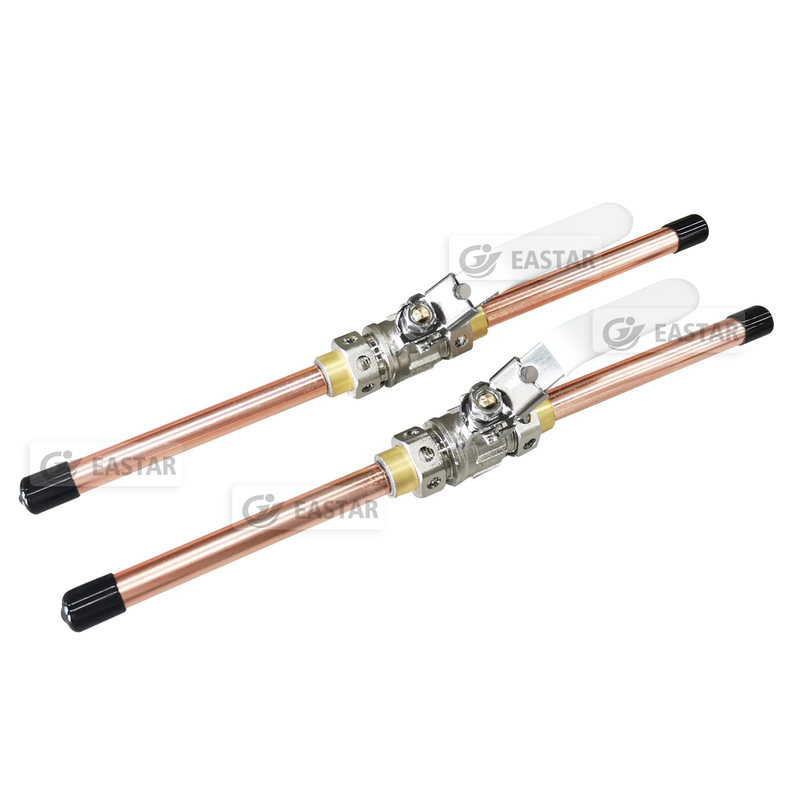

brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle
Material | Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700) |
Surface | Natural brass/ chrome plated |
Size | 1/4" to 4" |
Testing pressure | 100% tested with 0.6MPa - 0.8MPa by air |
Connection | Female thread x Female thread ,FXM,MXM |
Valve guarantee | 3 Years |
Samples time | 3 days - Current type |
OEM Acceptable | Yes /ODM , |
Place of origin | Zhe |
JUNYUAN GROUP is built in Ningbo China .Founded in 1994 junyuan group is a professional manufacturer who dedicates herself to develop and produce within hydro system. After ten years untiring effort,we become an experting company specializing in designing,producing,and marketing her main products: brass & bronze valves and fittings, water meter accessaries and pipe fittings, pump and parts ,PPR inserts,camlock and grooved couplings ect.
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality+Factory Price+Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team,
you can totally believe our service.
• After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
• After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone
