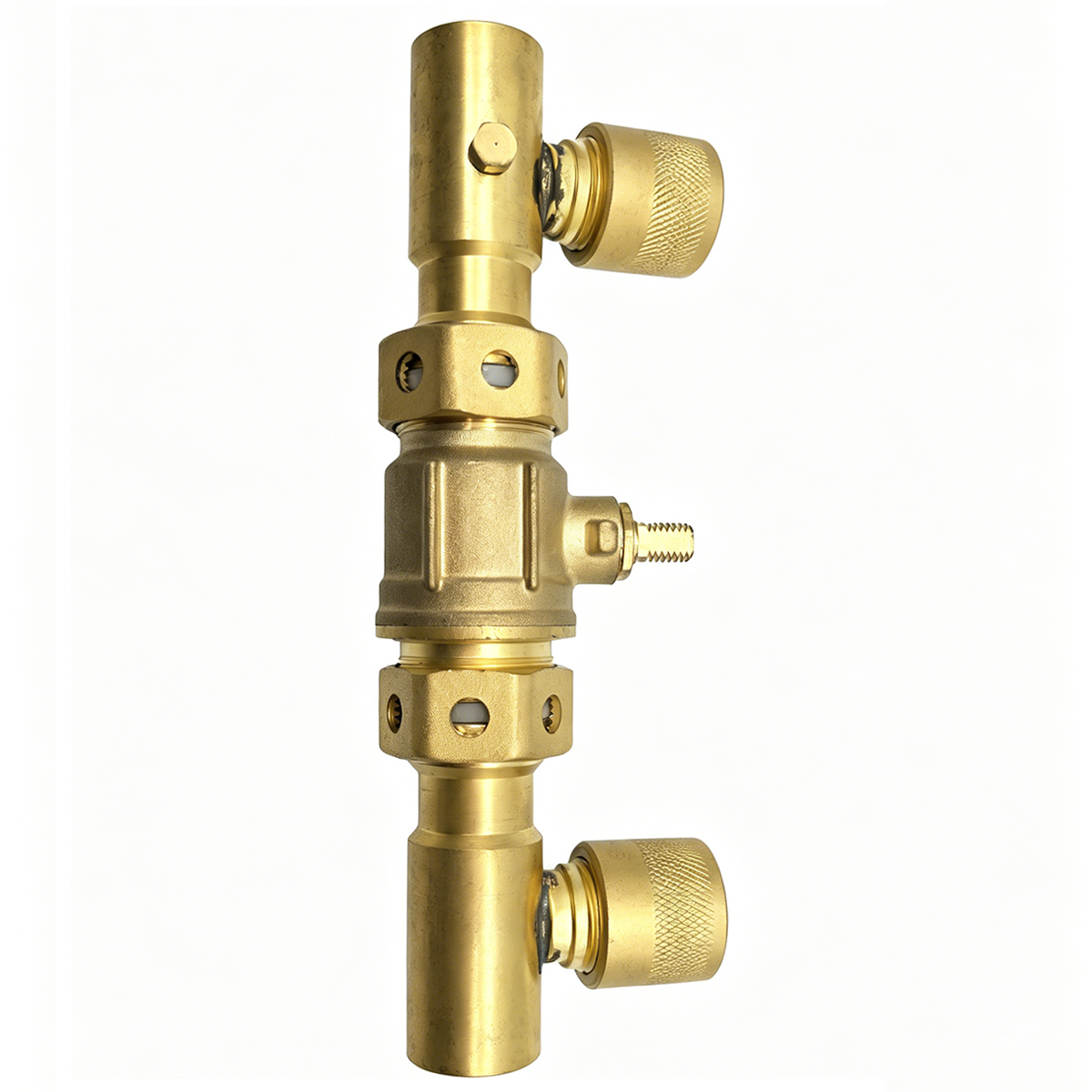

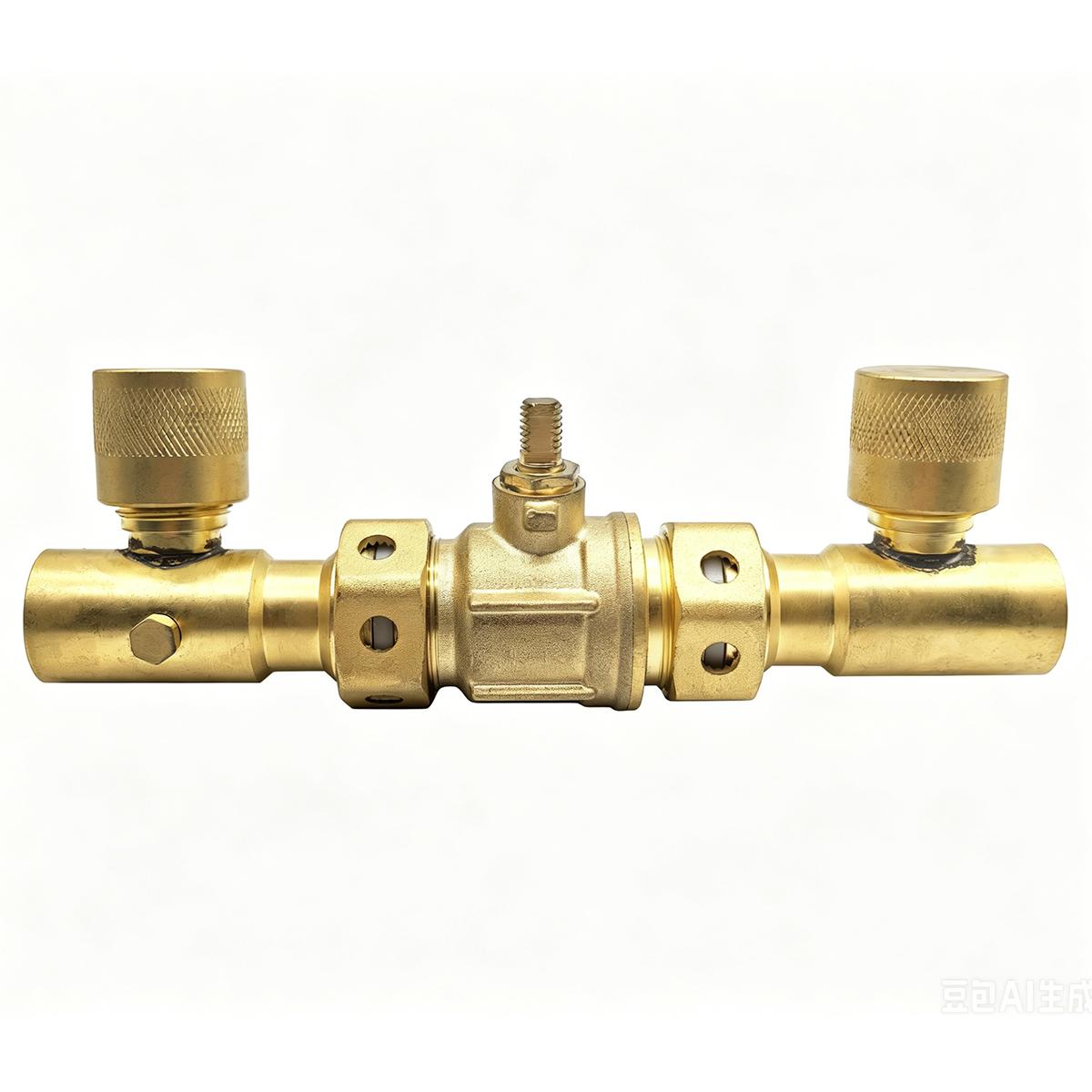

DN15-PN25-Medical-NIST-Lockable-Line-Valve

Specifications

NIST (Non-Interchangeable Screw Threaded) connectors are an integral part of maintaining safe distribution of medical gas in healthcare environments, by preventing accidental cross-connection of different medical gases.

• Meets the requirements of HTM 02-01 & HTM 2022 - Medical Gas Pipeline Systems.

• 15mm – 108mm sizes available.

• Flat face unions between stubs and valve incorporating o-ring seals for gas tight connections.

• Valve handle is lockable in the open or closed position to prevent unauthorised or inadvertent valve operation.

• Supplied with EN ISO 18082 NIST connectors.

• 100% tested for leaks to atmosphere and isolation when in the closed position.

1. Integrated NIST Connector : Equipped with a standard NIST (Non-Interchangeable Screw Thread) connection, allowing for easy pressure testing and emergency gas supply without disrupting the main pipeline.

2. Safety Locking Mechanism: Features a robust lockable lever handle to prevent unauthorized operation, ensuring gas supply security in critical hospital zones.

3. Oxygen Cleaned & Degreased: Strictly cleaned for oxygen service according to ISO standards, ensuring zero grease or contamination in high-pressure medical gas lines.

4. Directional Non-Interchangeability : NIST connections are gas-specific to prevent accidental cross-connection between different medical gases (O2, Air, Vac, N2O).

5. Bi-Directional Flow & Tight Seal: High-quality brass body with PTFE seats provides bubble-tight shut-off and stable performance under both vacuum and pressure.

6. Full Port High Flow : Designed with a full port bore to minimize pressure drop and ensure maximum flow rate for life-support systems.

7. Maintenance-Friendly : The modular design allows for quick inspection of seals and easy access to the test point for routine hospital maintenance.
