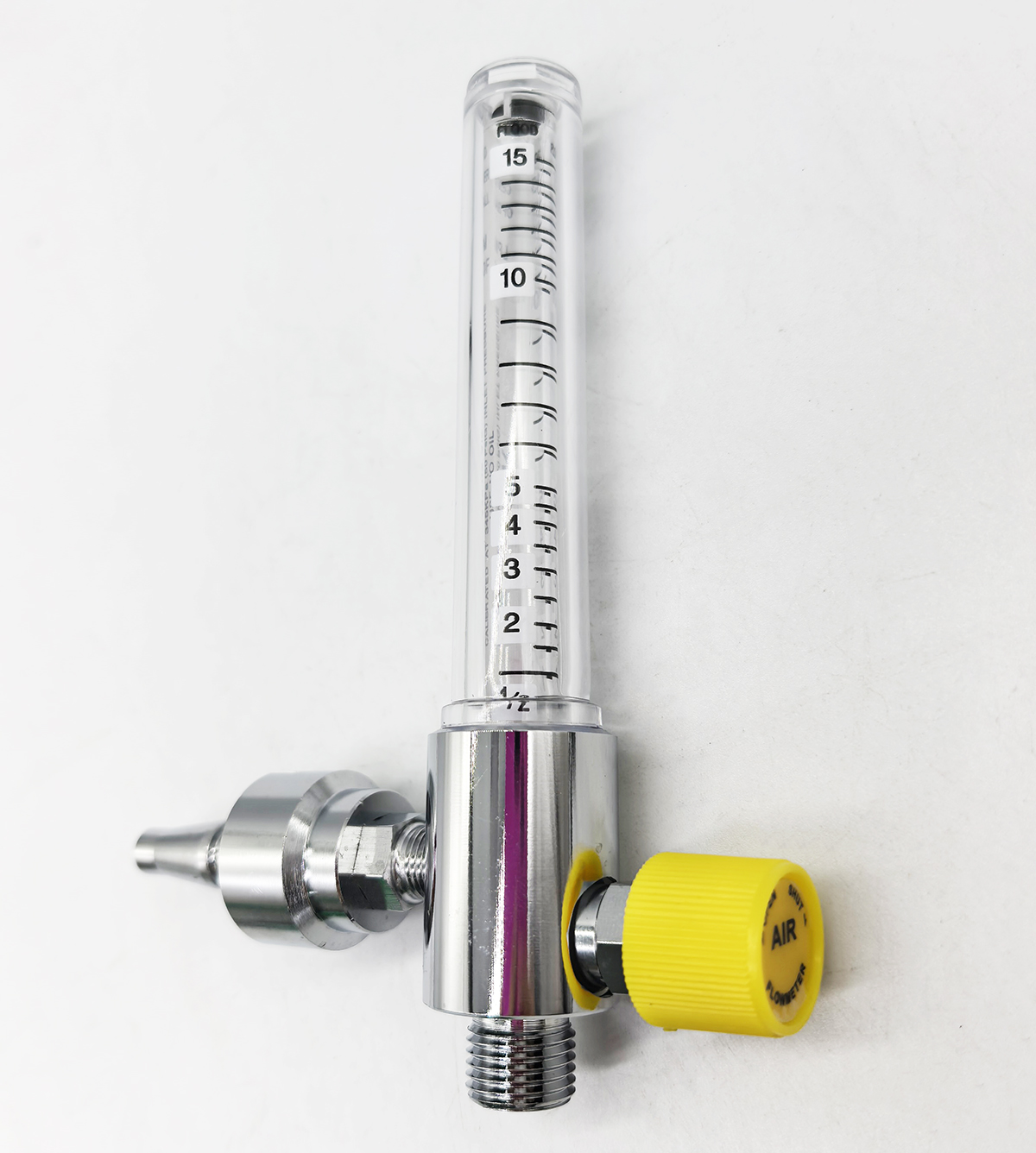

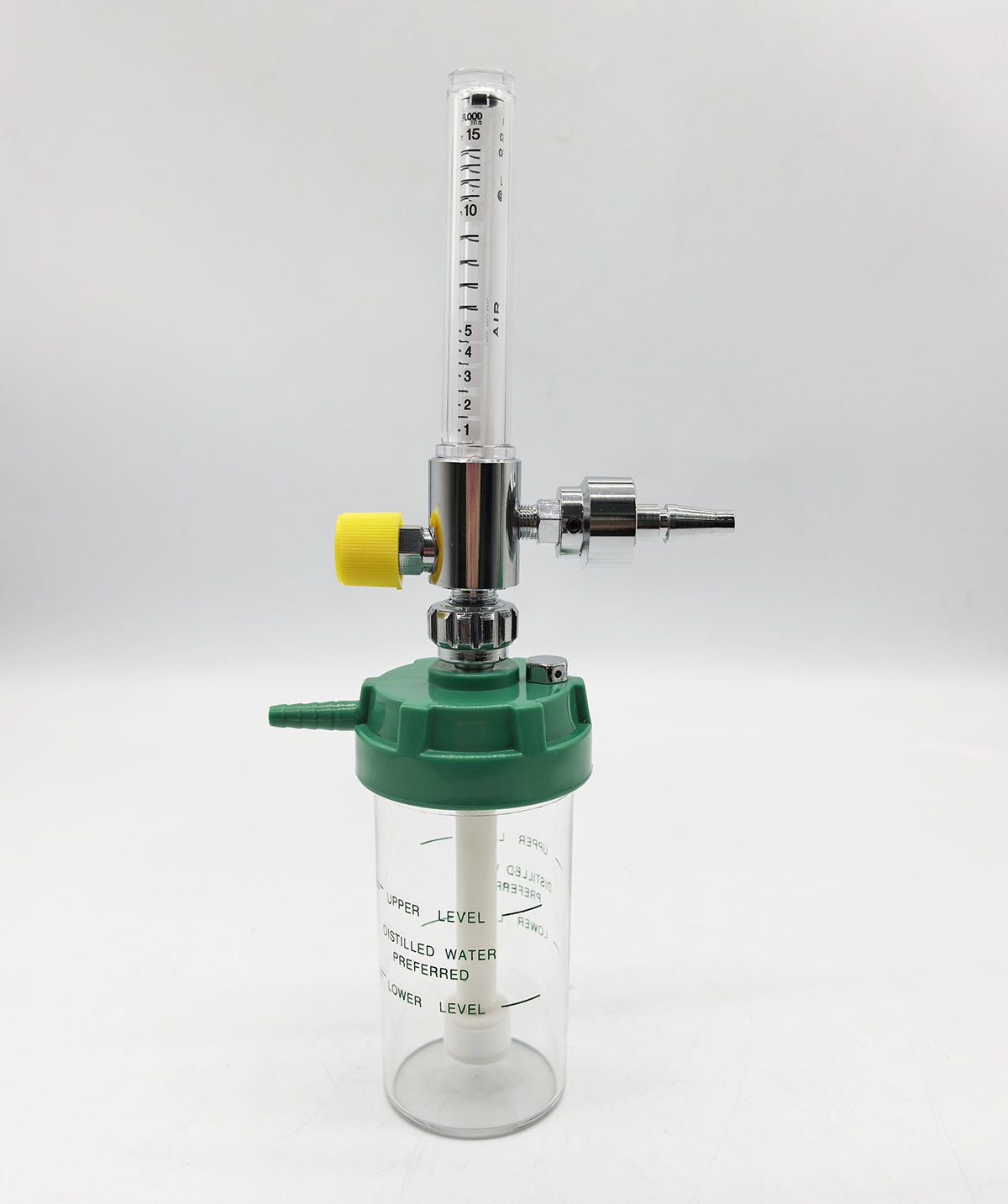

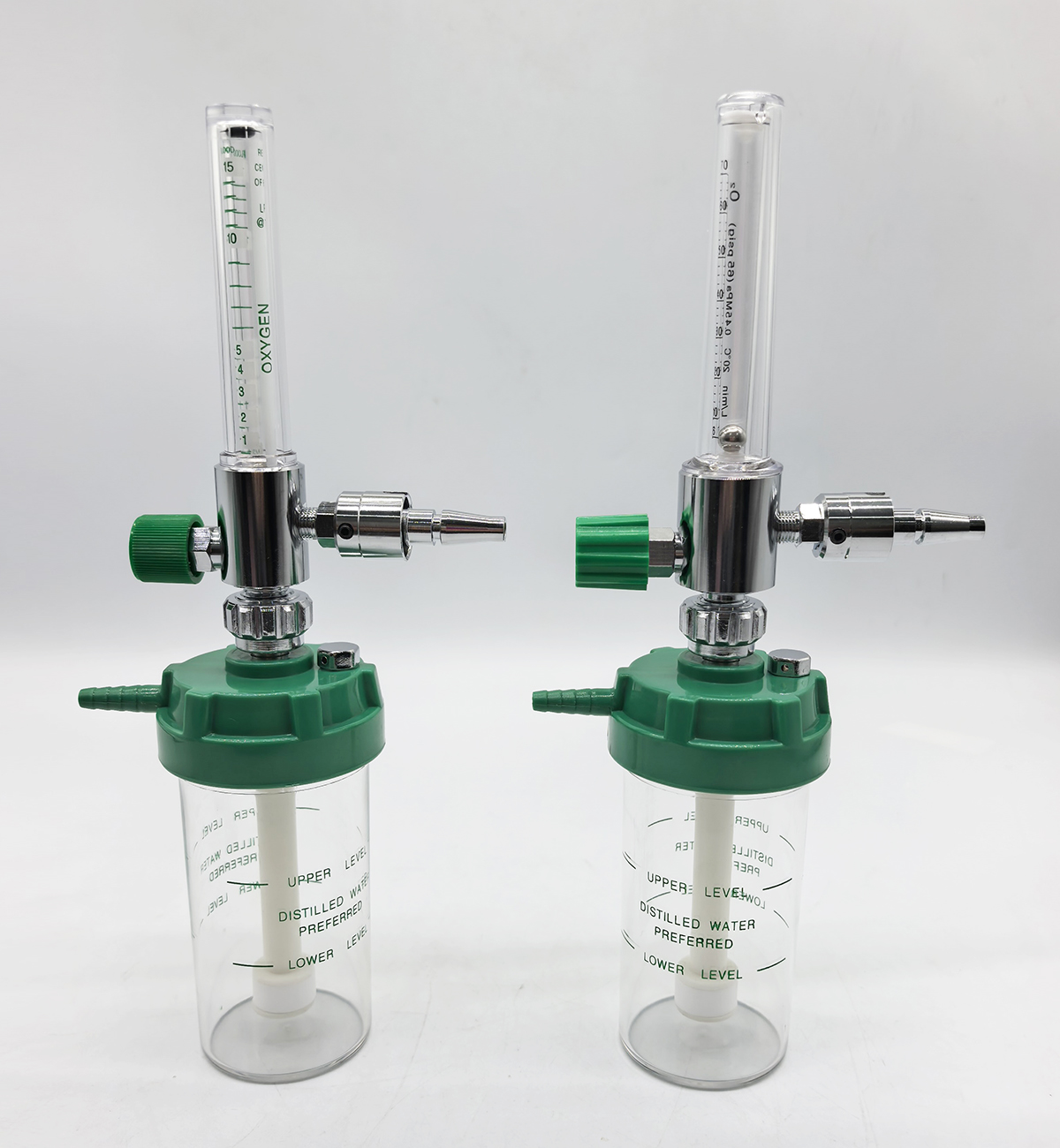

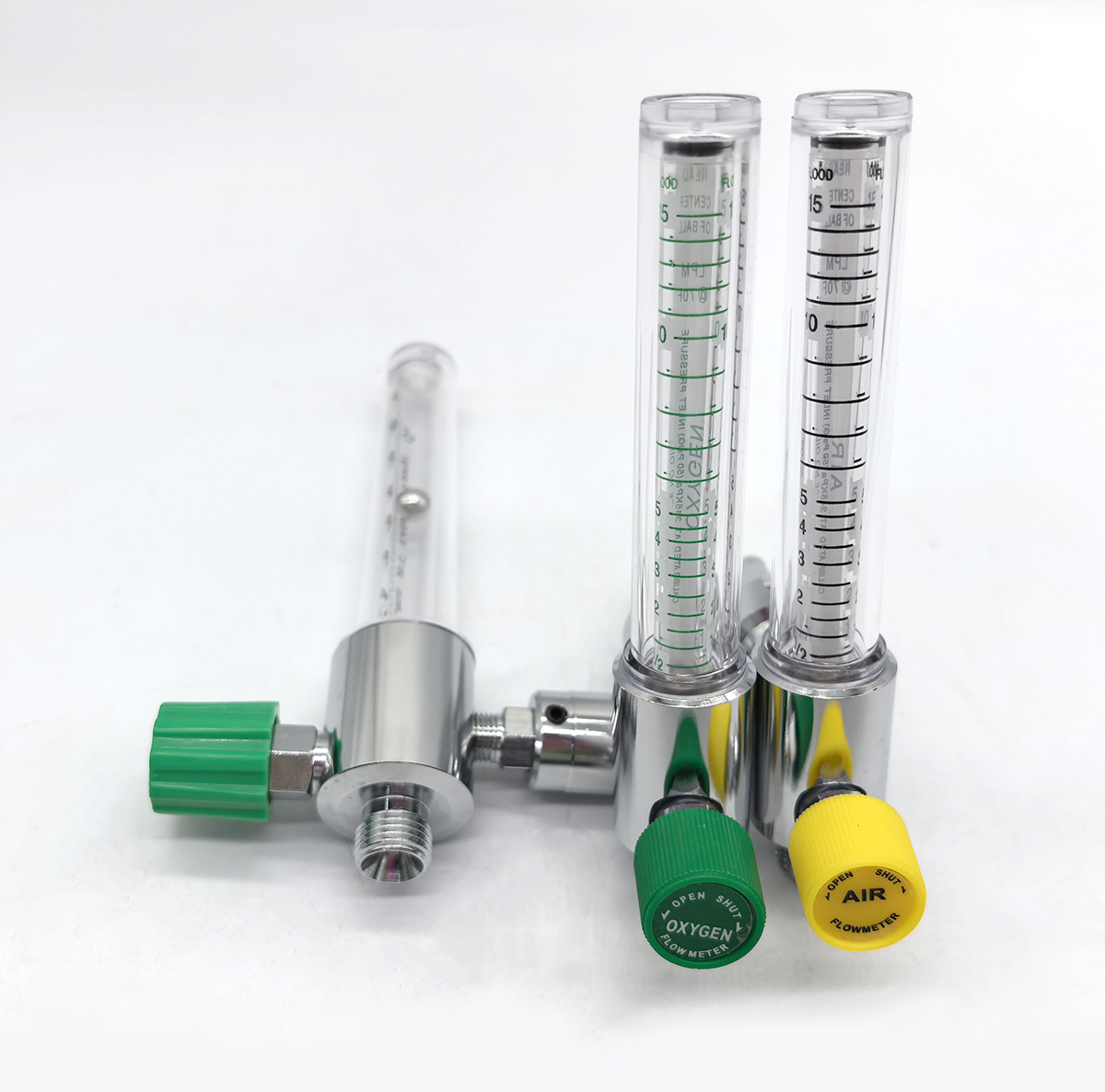

NFPA Color Oxygen FlowmeterAmerican Chemetron Oxygen Flowmeters

ISO13485 Certified Quality: Manufactured under ISO13485 Quality Management system with pre-shipment testing.
Flexible MOQ Policy: Minimum Order Quantity is only 50 PCS, accepting small orders for flexibility.

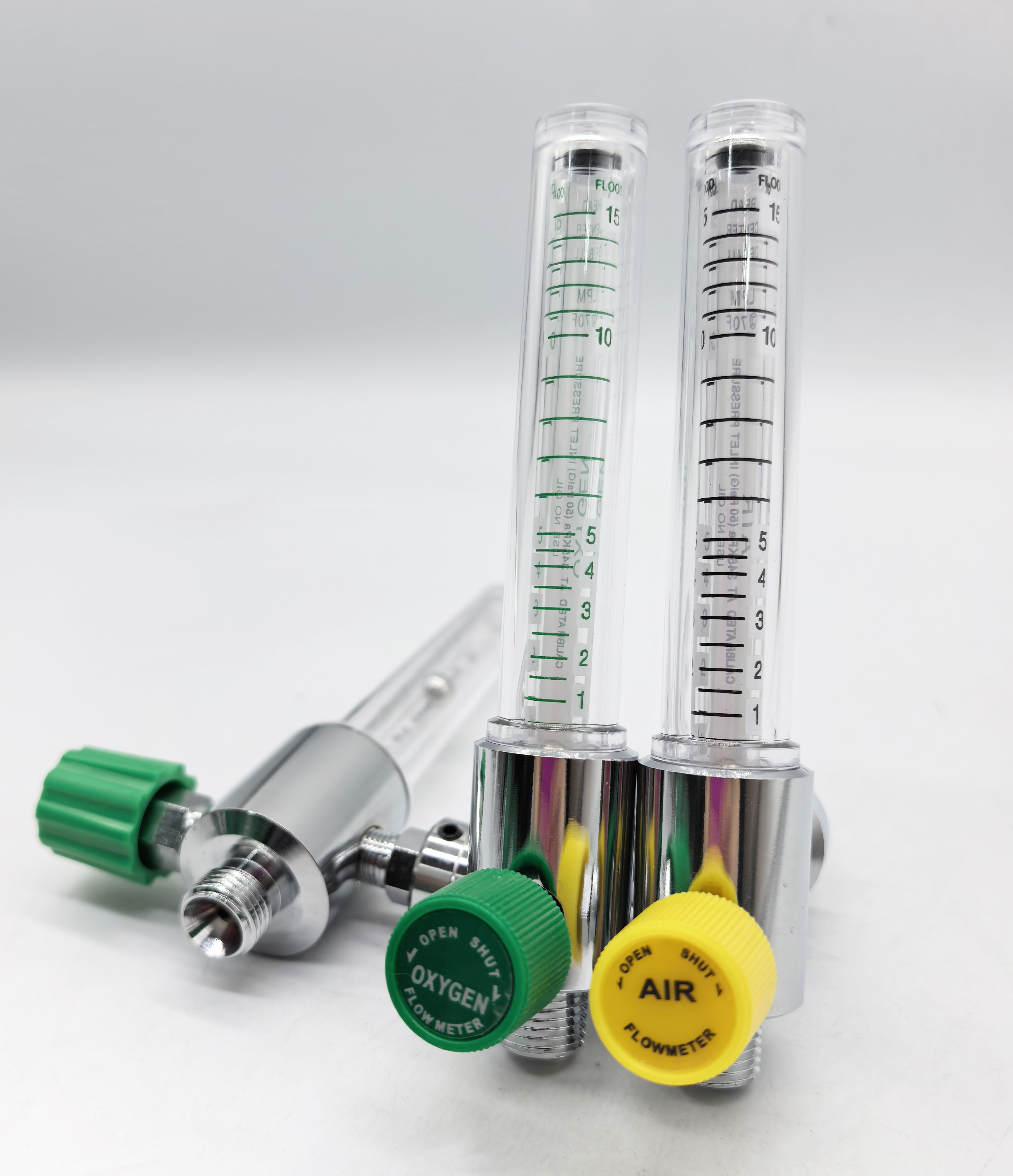

Customizable Adapters: Optional probes available for German, French, American, British, and Japanese standards.
Multi-Flow Rate Options: Flow rates available in 1-10L/min and 1-15L/min configurations for various needs.

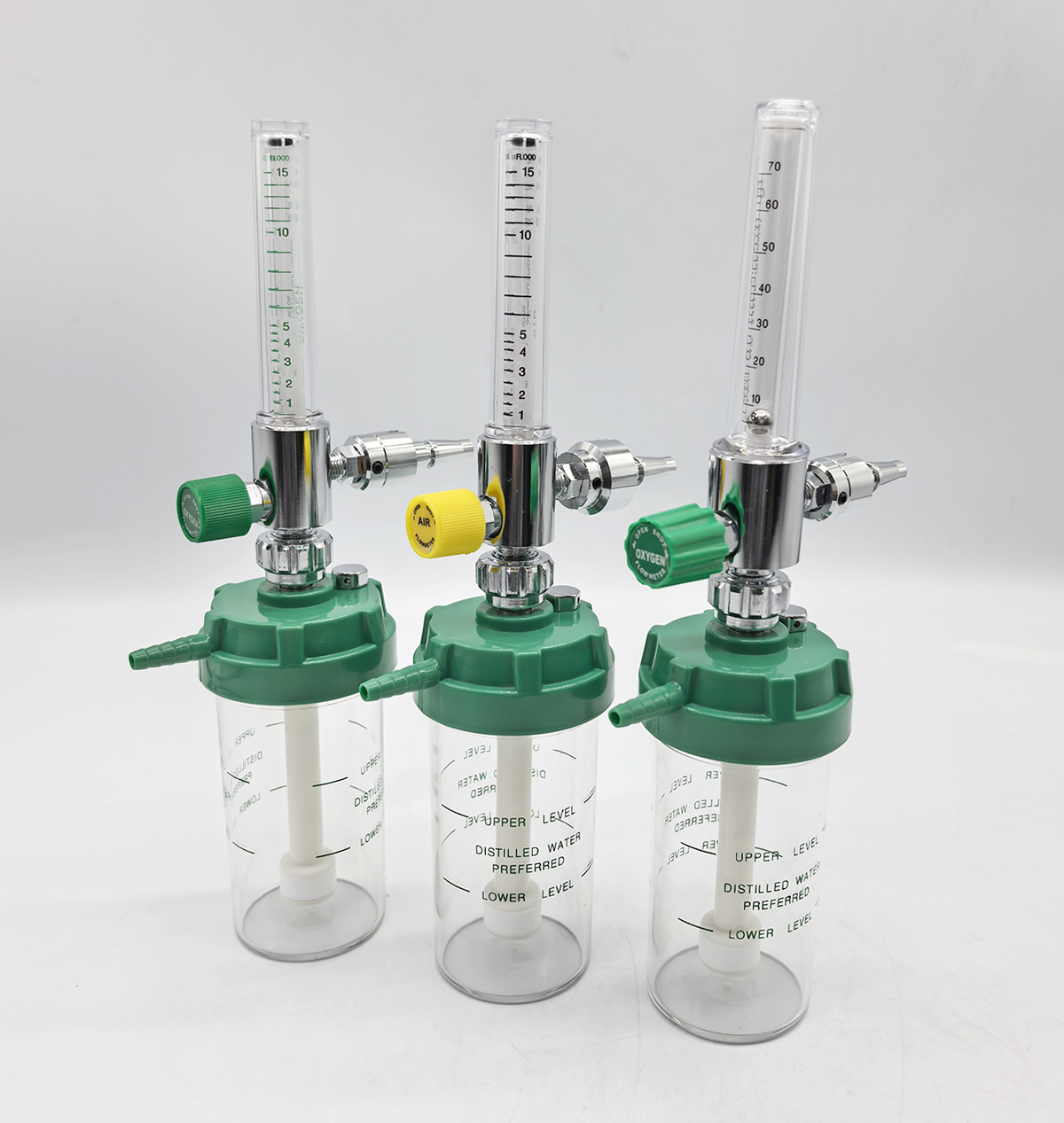

Integrated Humidifier: Includes reusable O2 humidifier with optional capacities of 200ml, 170ml, or 500ml.

Availability:

Quantity:



Inquire Add to Basket

Model:
MGF10

Product Description

Application:This gas regulator is suitable for home, outdoor and other places

Easy to use: it can be connected to the professional equipment. The pressure reducing valve can adjust the flow arbitrarily, and the flow regulation range is 0-10l / min

Good filtering effect: equipped with filtering device, it can filter impurities and make it safer to use.

Assured quality: Brass pressure relief valve, wear and corrosion resistance, strong sealing. Glass pressure gauge with clear scale and high sensitivity

Technical parameters detailed description

Flow tube:flow scate line uniform stranight is clear, the center line and pipe is vertical.

Flow adjusting knob:adjust flow easily,shut off the flow without oxygen output Automitic Discharge Pressure of The Safety Valve:0.35±0.05Mpa

Plug:and the terminal cinnection,inout gas.

Connecting nut: flowmeter and the tide turn cup connected.

Tide change glass(bottle):made of engineering plastic: gather carbon made of PC,immerses disifection,can be 130ºC high temperature disinfection

Filter tube:can unpick and wash,repeat use.

Medical gas	Oxygen, Medical air
Flow ranges	0-1.5LPM,0-5LPM,0-10LPM,0-15LPM,0-30LPM,0-50LPM.0-70LPM
Inlet pressure	50 psi
Accuracy of flow rate	±5%
Material	Chrome plated brass body, Polycarbonate tubes, Stainless steel ball
