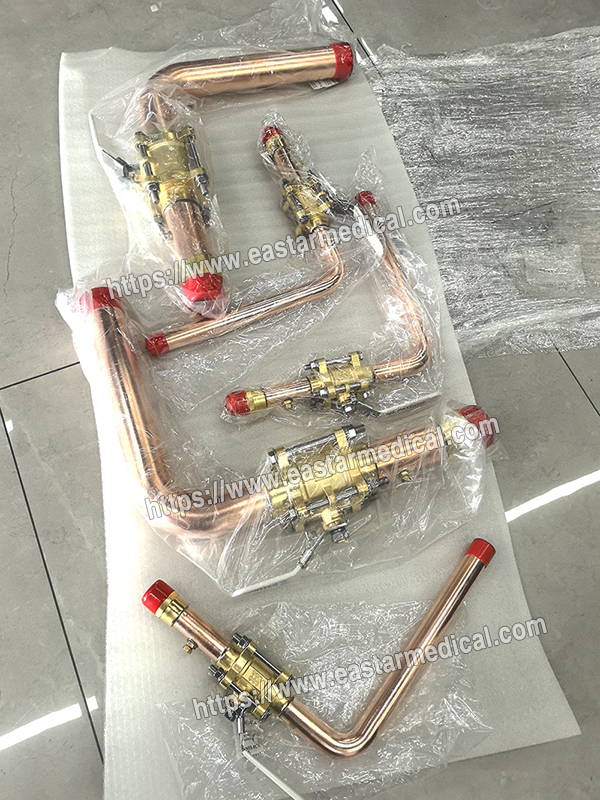

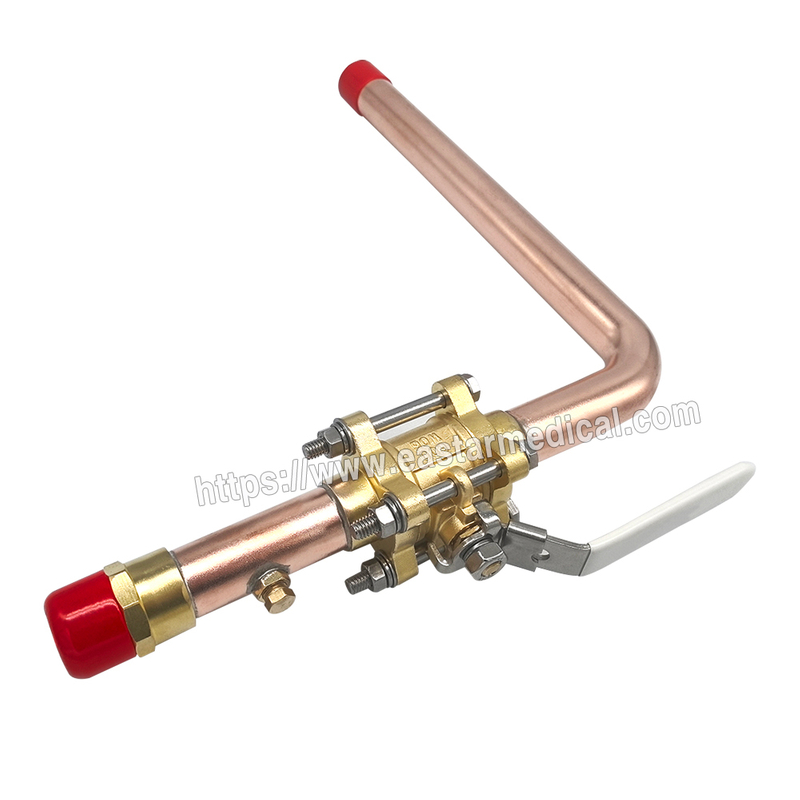

Three-piece Brass Medical Lockable Line Valve for Hospital with 90 Degree Pipe

Min. Order: 50 Piece/Pieces
Trade Term: FOB,CFR,CIF,DAT,FAS,DDP,DAP,CIP,CPT,FCA,EXW
Payment Terms: Paypal, L/C, D/P, D/A, T/T, WU, Money Gram
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 100000pcs/month

Availability:
Quantity:
  • JYLV-03L-3

  • OEM

medical gas valve

Specifications

  • Size: 1/4'',3/8'',1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4''

  • Meterial: Forged Brass (CW617N,CW614,CW602N,ASTM C 37700)

  • Technical Specification:

  • Norminal pressure: 3.0Mpa

  • Tested Pressure: 2.0Mpa

  • Working medium: Water, oil, gas

  • Working temperature: -20° C≤ T≤ 120° C

  • Thread standard: According  ISO228, ISO7/1, DIN2999/

  • For the handle, it could be changed to Zinc alloy and aluminum handle

  • Package details: Each valve by one polybag, inner box, Cartons with wooden pallets

  • Application: House connection and drinking meter networks, water pipe connection and flow control

  • brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle


Material

Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)

Surface

Natural brass/ chrome plated

Size

1/4" to 4"

Testing pressure

100% tested with 0.6MPa - 0.8MPa by air

Connection

Female thread x Female thread ,FXM,MXM

Valve guarantee

3 Years

Samples time

3 days - Current type
15 days - New mould

OEM Acceptable

Yes /ODM ,



111015130562

111025519686
